    Add
    In This Topic

    Function Name
    Add
    Category
    Maths
    Icon
    Add
    Description
    Add two numeric values
    Inputs
    Value 1 First value to add
    Value 2 Second value to add
    Outputs
    Result Sum result of adding value 1 and value 2
    Properties
    None -

    Usage

    The Data Mapper Maths Add function allows you to carry out addition on input values. You can use the Add function with input source data or in conjunction with other arithmetic functions in the Maths section. To apply the Maths Add function, use the following process:

    Create a new Data Mapper file, dragging your XML data source and target into the editor area. For this example we are using payroll_source.xsd, an XML Schema Definition inferred from the following source:

    Source XML
    Copy Code
    <payroll>
     <employee payroll_id="126">
      <rate>9.45</rate>
      <hours>35</hours>
      <bonus>50.00</bonus>
      <funding>350</funding>
     </employee>
     <employee payroll_id="129">
      <rate>10.50</rate>
      <hours>40</hours>
      <bonus>150.00</bonus>
      <funding>500</funding>
     </employee>
     <employee payroll_id="130">
      <rate>8.90</rate>
      <hours>35</hours>
      <bonus>100.00</bonus>
      <funding>400</funding>
     </employee>
     <employee payroll_id="133">
      <rate>11.20</rate>
      <hours>40</hours>
      <bonus>200.00</bonus>
      <funding>600</funding>
     </employee>
    </payroll>


    For our target schema we will be using payroll_target.xsd, inferred from the following XML:

    Target XML
    Copy Code
    <wages>
     <payee>
      <ref>122</ref>
      <result type="cost">500.00</result>
     </payee>
     <payee>
      <ref>125</ref>
      <result type="cost">475.50</result>
     </payee>
     <payee>
      <ref>126</ref>
      <result type="cost">600.20</result>
     </payee>
    </wages>


    The data models payroll data for temporary staff within an organisation. The output is designed to capture some value calculated from the source, using the "type" attribute to indicate what the calculation result represents. Let's assume that we want to calculate the weekly cost of employing each staff member, including their bonus payment. To calculate this we will need to multiply the hourly rate by the number of hours worked, then add the bonus to the result. Here is the Data Mapper with Source and Target imported:

    Data Mapper Source and Target

    Drag the Maths Add function from the Component Palette into the mapping area:

    Add Component

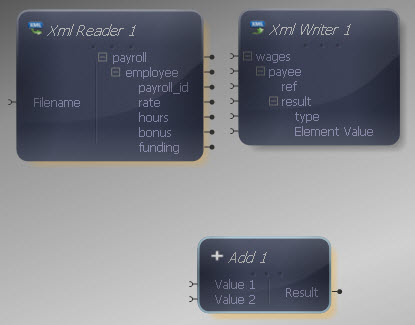

    Add Added

    The Add component has two inputs, representing the values to add. Both inputs and output of the Add function may be connected to items in the XML Reader/ Writer or other components in the Mapper.

    Connect the first Add input to the "bonus" output in the XML Reader.

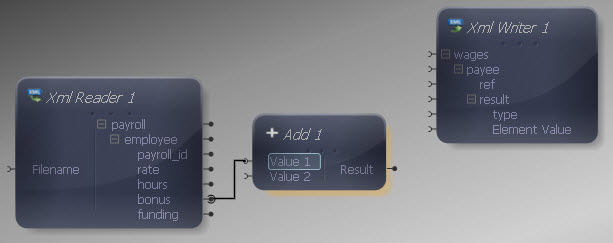

    Reader to Add

    For the second Add input, we need to carry out another calculation. Drag a Multiply component onto the Mapper, connecting its inputs to the "rate" and "hours" outputs in the XML Reader.

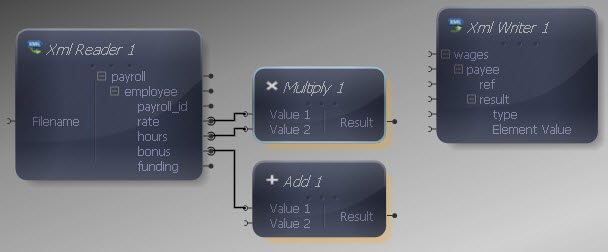

    Reader to Multiply

    Connect the output of the Multiply function to the remaining Add input.

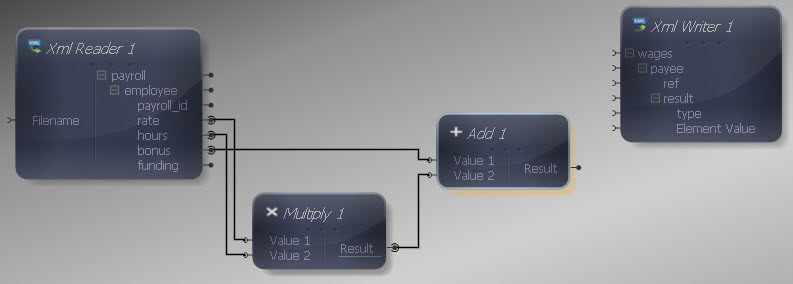

    Multiply to Add

    Now connect the Add output to the "Element Value" input in the XML Writer, so that the addition result is written into the "result" element.

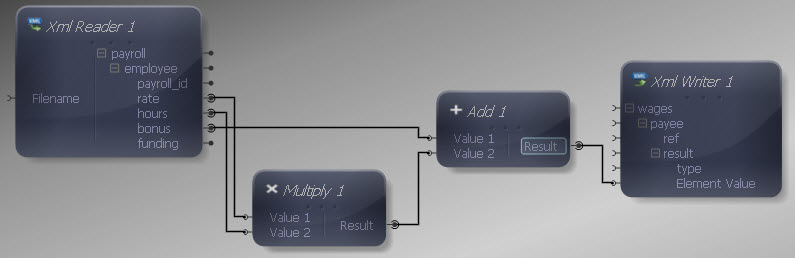

    Add Mapped

    Now we need to include the "type" attribute in the source, so add a Constant Value from the Data Type section. Right-click it and choose Show Properties. Choose a String Data Type and enter "cost" as the value.

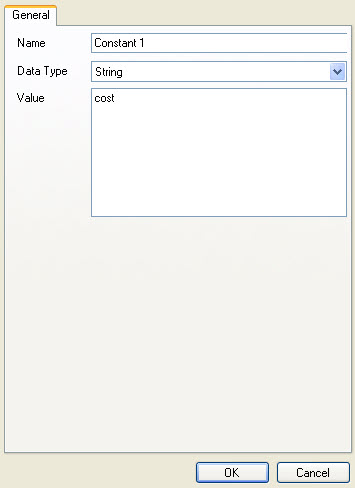

    Constant Properties

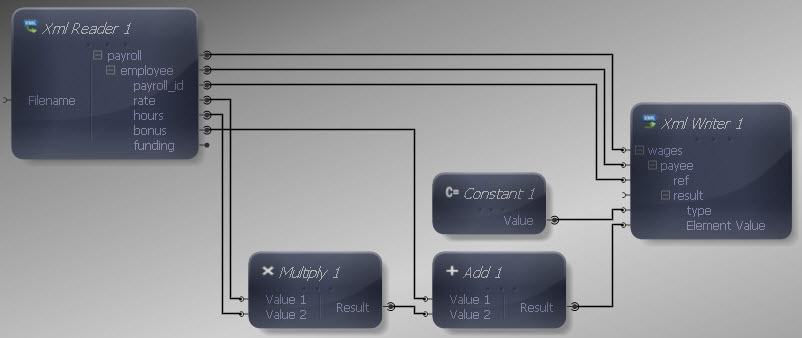

    Connect the Constant output to the "type" input in the XML Writer.

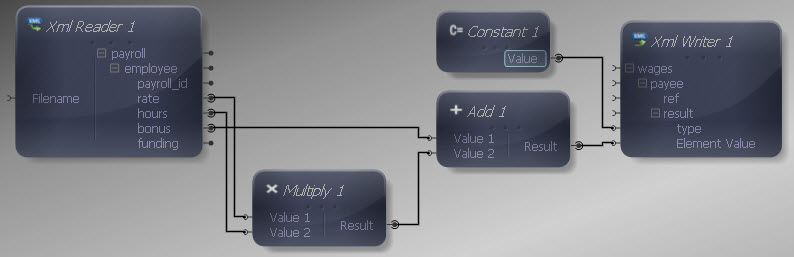

    Constant Added

    Finally let's make the remaining input and output connections. We do not want to map all data items in the source, as we are only interested in certain values. Map "payroll" to "wages", "employee" to "payee" and "payroll_id" to "ref". We don't need to map anything to the "result" input as the element will be written out each time the Mapper maps the addition result to "Element Value".

    Inputs and Outputs Connected

    We can now execute the transform by pressing Shift-F5 or the Execute button (Execute). The transform is applied and the file we selected as output opens in the editor:

    Output XML
    Copy Code
    <wages>
     <payee>
      <ref>126</ref>
      <result type="cost">380.75</result>
     </payee>
     <payee>
      <ref>129</ref>
      <result type="cost">570.00</result>
     </payee>
     <payee>
      <ref>130</ref>
      <result type="cost">411.50</result>
     </payee>
     <payee>
      <ref>133</ref>
      <result type="cost">648.00</result>
     </payee>
    </wages>


    The output contains an indicator of the weekly cost for each employee, comprising their bonus plus rate multiplied by hours worked.

    This is a scalar function so the standard rules apply if multiple values are presented to one or more inputs.
