    KeyRef
    In This Topic

    Graphical Representation

    KeyRef Notation

    Summary

    The <keyRef> element defines a reference to a key or unique constraint.

    Creating

    A <keyRef> can only be added to an element object. This can be done using the right click context menu on any of these entities.

    Properties

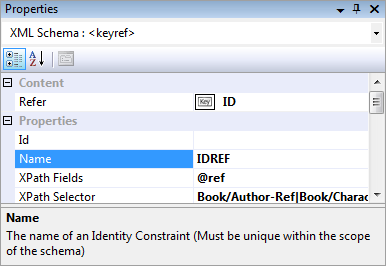

    KeyRef Properties

    Id - A user defined ID to uniquely identify the entity within the schema
    Name - the name of the key.
    Refer - the key or unique constraint to which this constraint refers.
    XPath Fields - 1 or more XPath expressions that uniquely identify selected element.
    XPath Selector - The XPath expression that identifies the element to which this key applies.

    Sample

    The following XSD code


    <?
    xml version="1.0" encoding="utf-8" ?>


    <!--
    Created with Liquid XML Studio (https://www.liquid-technologies.com)-->


    <
    xs:schema attributeFormDefault="unqualified" elementFormDefault="qualified" xmlns:xs="http://www.w3.org/2001/XMLSchema">


    <
    xs:element name="library">


    <
    xs:complexType>


    <
    xs:sequence>


    <
    xs:element name="Book">


    ...


    </
    xs:element>


    </
    xs:sequence>


    </
    xs:complexType>


    <
    xs:key name="ID">


    <
    xs:selector xpath="Book|Author|Character" />


    <
    xs:field xpath="@id" />


    </
    xs:key>


    <
    xs:keyref name="IDREF" refer="ID">


    <
    xs:selector xpath="Book/Author-Ref|Book/Character-Ref" />


    <
    xs:field xpath="@ref" />


    </
    xs:keyref>


    </
    xs:element>


    </
    xs:schema>






    Will be represented like this

    KeyRef Samples

     Inline Properties

    Properties that apply to a type are shown inline at the bottom of the items container.

    Values that are inherited from the base types are shown in brackets, values specifically set against the item are shown without brackets.

    If a facet is not valid for a given type (typically because of its data type), then its value is shown in red.

    Inline properties can be disabled in the Options.
