    Element Reference
    In This Topic

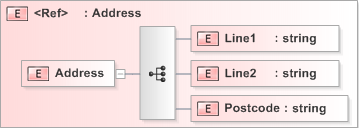

    Graphical Representation

    Summary

    An <xs:element> that is defined in a global scope (i.e. its parent is <xs:schema>) can be referenced through out the schema. This provides a mechanism for reuse.

    Note: <xs:complexType> is typically am much better mechanism to provide re-use. Globally defined elements indicate that the element can be the root element in an XML Document, so over use of them can be confusing.

    Creating

    An <xs:element> can be referenced by setting a the type of the <xs:element> to the name of an existing global element. This can be done via the properties panel or the type drop down in the graphical view.

    Sample

    The following XSD code

    <xs:element name="Address">

    <xs:complexType>

    <xs:sequence>

    <xs:element name="Line1" type="xs:string" />

    <xs:element name="Line2" type="xs:string" />

    <xs:element name="Postcode" type="xs:string" />

    </xs:sequence>

    </xs:complexType>

    </xs:element>

    ...

    <xs:element name="Customer">

    <xs:complexType>

    <xs:sequence>

    <xs:element ref="Address" />

    </xs:sequence>

    </xs:complexType>

    </xs:element>

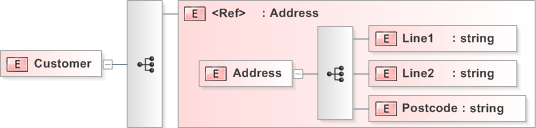

    Will be represented like this



    Sample XML would look like this

    <?xml version="1.0" encoding="utf-16"?>

    <Customer>

    <Address>

    <Line1>12 SomePlace St</Line1>

    <Line2>Some Town</Line2>

    <Postcode>HG27JU</Postcode>

    </Address>

    </Customer>

     Inline Properties

    Properties that apply to a type are shown inline at the bottom of the items container.

    Values that are inherited from the base types are shown in brackets, values specifically set against the item are shown without brackets.

    If a facet is not valid for a given type (typically because of its data type), then its value is shown in red.

    Inline properties can be disabled in the Options.
