Referenced Schema
JSON Schema Editor > Graphical Notation Overview > Definition Container > Referenced Schema
Draft 04 Draft 06 Draft 07

References and Definitions are the main mechanism within the JSON Schema standard to support re-use. Essentially a schema can be declared within the root schemas Definitions Container, these definition schemas can then be referenced and re-used elsewhere within the schema.

Schemas that reference a definition have a over the normal icon, and the type field shows the definition they are referencing.

Code Snippet
Copy Code
"ISBN": {
    "$ref": "#/definitions/isbnType"
}

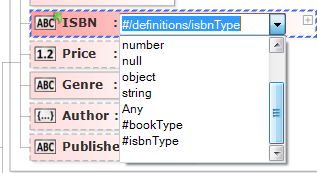

The UI will provide a list of existing definitions when the type field is dropped down and automatically build a reference is one is selected.

Changes made to a referenced schema are made to the definition.
