    Web Service
    In This Topic

    Function Name
    Web Service
    Web Service
    XML Source
    Define a call to a Web Service
    Filename The value will be treated as a filename and loaded into a XML Document.
    (can not be connected if 'XML String' is connected)
    XML String The value will be treated as raw XML data and parsed into the XML Document.
    (can not be connected if 'Filename' is connected)
    Data Items in source Nodes, attributes and values in the source XML data
    General Specify the name of the Source component
    Structure Specify the Schema, root element and type for source structure
    Source Data Specify filename to use as source XML when mapping executes


    Allows Web Service calls to be made within the Data Mapper.

    Because it is possible to call a web service in the following ways

    The Web Service component is unlike many of the other components as it can behave as a data source and data target.

    Creating an XML data source

    To begin, drag the Web Service component from the Component Palette onto a new Data Mapper file.

    XML Data Source Component

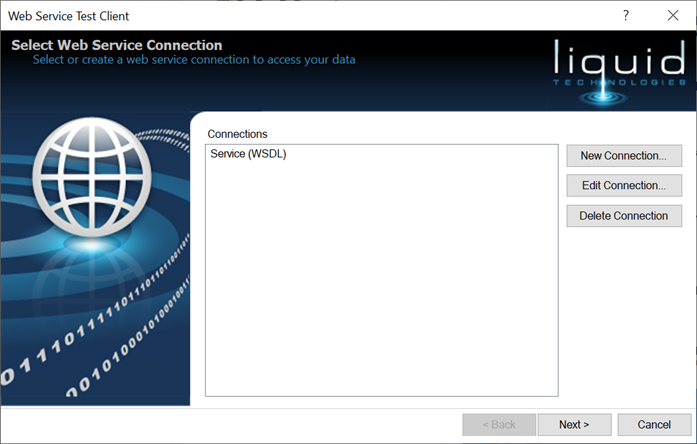

    As soon as you drag the component over, the Web Service Wizard will open, guiding you through the process of defining your mapping source.

    Select a WSDL or WADL File

    First you must select the web service type you want to look at (WSDL, WADL or User Defined Web Service - see below) using the radio buttons at the top of the page.

    You then need to specify the URL that returns the WSDL or WADL for the web service.

    For .Net web services, this of the form http://ServerName/Service.asmx?WSDL

    You can also select a local file e.g C:\temp\Service.wsdl

    You can test the web service your have specified is valid using the "Test" button.

    For those just curious about the tool, we have supplied a simple web service which allows you to explore the functionality of the Web Service Test Client. To use this web service, click the "Use Liquid Technologies Sample Web Service" link button.

    If the service requires authentication, then you can add a user name and password.

    If you save the web service call then the password is not encrypted in the file.

    The Wizard will not allow you to move on until the web service URL is pointing at a valid WSDL file.

    Selecting a Web Method

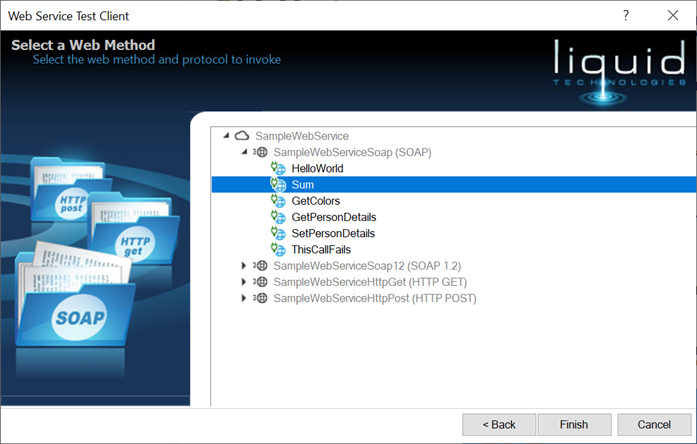

    You can now select the Web method you wish to call. Web services typically offer the ability call there methods using a number of protocols. The browser shows all the supported protocols and all the methods exposed for each of them (Note Not all methods can be called via HTTP POST & GET).

    The Web Service Test Client supports 4 protocols, Soap 1.1, Soap 1.2, HTTP GET & HTTP POST. Any other protocols are ignored.

    Once you select your method, and press Finish, and request is constructed for you.
    You can then modify the request and call the web method. See Web Service Test Client.


    Select option to create a User Defined Web Service

    If your Web Service does not have a WSDL or WADL file, you can choose the option to create a User Defined Web Service on the first page of the Wizard.

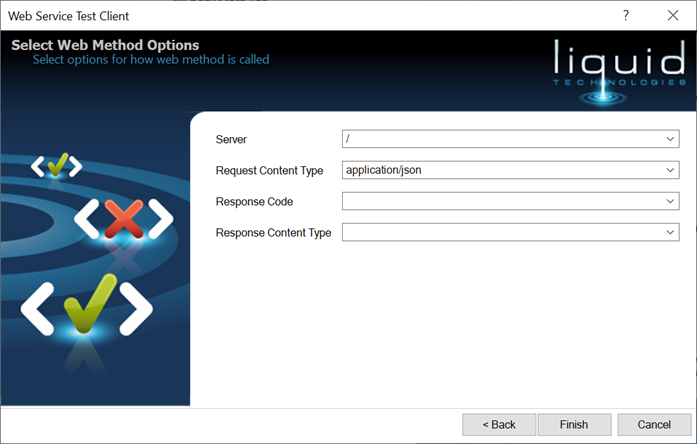

    When you click 'Next >' you are then presented with the following screen which allows you to specify a service, URI, method (GET or POST) and method parameters.



    Clicking 'Finish' then allows you to save the User Defined Web Service as a WADL file.

    The next time you want to access the service, you can then select the WADL file you just created.
