Liquid Studio Documentation
Data Mapping / Data Mapper Functions / By Category / File / ResolvePath
In This Topic
    ResolvePath
    In This Topic

    Function Name
    ResolvePath
    Category
    File
    Icon
    Description
    Resolves the absolute Path from the base path and relative filename
    Inputs
    BasePath

    The base Path used to resolve the relative path.

    RelativePath The Path to resolve. The Path can be absolute or relative. If absolute, this value effectively replaces the basePath value. If relative, it combines with the basePath to make an absolute aPath.
    Outputs
    Filename The absolute URI.
    Properties

    Usage

    The Data Mapper ResolvePath function resolves a filename or path relative to the base path provided:

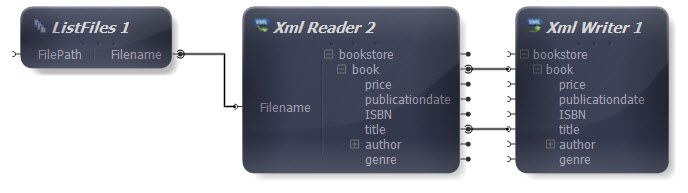

    In the following example the filenames taken from the ListFiles component are fed into the XML Readers Filename input. So every filename that ListFiles returns is opened as an XML document:

    If we have the following input files in the target folder

    Input001.xml
    Copy Code
    <?xml version="1.0" encoding="utf-8"?>
    <!-- Created with Liquid XML Studio (https://www.liquid-technologies.com) -->
    <bookstore xmlns="https://www.liquid-technologies.com/sample/bookstore">
     <book price="4.99" publicationdate="2008-10-20" ISBN="978-0747596837">
      <title>The Graveyard Book</title>
      <author>
       <first-name>Neil</first-name>
       <last-name>Gaiman</last-name>
      </author>
      <genre>Horror</genre>
     </book>
     <book price="21.99" publicationdate="2002-05-14" ISBN="0-596-00252-1">
      <title>XML Schemas</title>
      <author>
       <first-name>Eric</first-name>
       <last-name>van der Vlist</last-name>
      </author>
      <genre>Reference</genre>
     </book>
    </bookstore>

    Input002.xml
    Copy Code
    <?xml version="1.0" encoding="utf-8"?>
    <!-- Created with Liquid XML Studio (https://www.liquid-technologies.com) -->
    <bookstore xmlns="https://www.liquid-technologies.com/sample/bookstore">
     <book price="5.99" publicationdate="1999-05-02" ISBN="0-945-16546-1">
      <title>The Portable Door</title>
      <author>
       <first-name>Tom</first-name>
       <last-name>Holt</last-name>
      </author>
      <genre>Fiction</genre>
     </book>
    </bookstore>


    The if the ListFiles function is configured with a pattern say "input*.xml" then the 2 files will be read into the XML Reader and passed onto the writer resulting in;

    Output XML
    Copy Code
    <bookstore xmlns="https://www.liquid-technologies.com/sample/bookstore">
      <book>
        <title>The Graveyard Book</title>
      </book>
      <book>
        <title>XML Schemas</title>
      </book>
      <book>
        <title>The Portable Door</title>
      </book>
    </bookstore>

    Properties

    The ListFiles properties values can be edited using the Properties Window.

    When used in an XSLT transform the output will be in Uri format

    Example

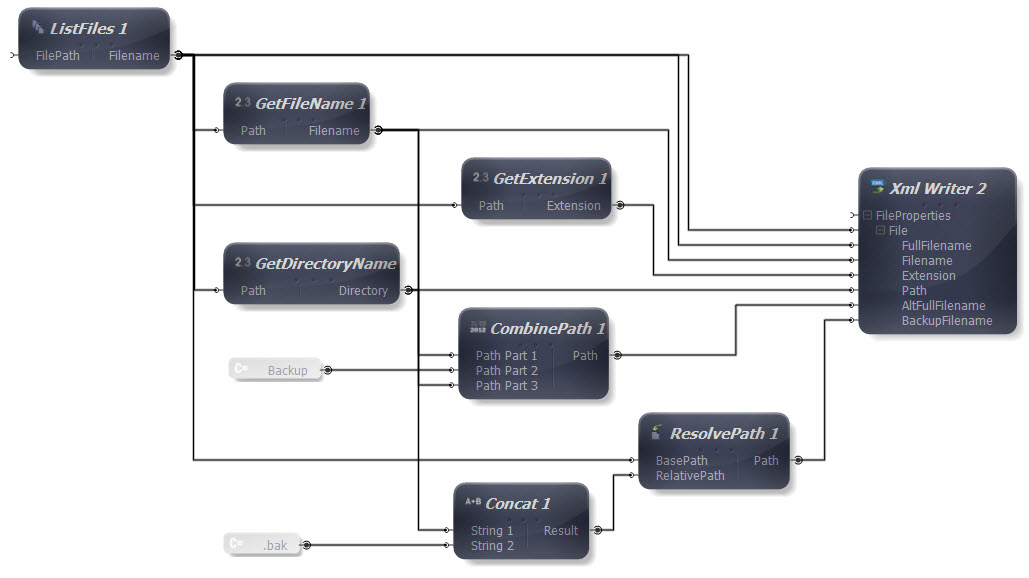

    A range of functions are provided for working with Uri's and Path's. The following example demonstrates how these can be used.

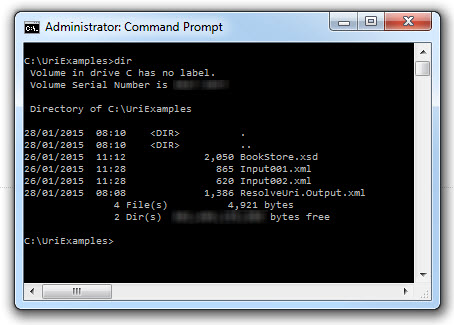

    In the following example we have a directory c:\UriExamples\ that contains the files Bookstore.xsd, Input001.xml, Input002.xml & ResolvedUri.Output.xml.

    In our transform we have configured "ListFiles" to operate on the directory "c:\UriExamples\" and use the pattern "Input*.xml"

    As you can see the ListFiles component gets the full paths of all the files that match the pattern. These filenames are then fed into the various Uri functions and output into an XML writer.

    The result of the transform is as follows

    Transform Output
    Copy Code
    <FileProperties>
      <File>
        <FullFilename>C:\UriExamples\Input001.xml</FullFilename>
        <Filename>Input001.xml</Filename>
        <Extension>.xml</Extension>
        <Path>C:\UriExamples</Path>
        <AltFullFilename>C:\UriExamples\Backup\Input001.xml</AltFullFilename>
        <BackupFilename>C:\UriExamples\Input001.xml.bak</BackupFilename>
      </File>
      <File>
        <FullFilename>C:\UriExamples\Input002.xml</FullFilename>
        <Filename>Input002.xml</Filename>
        <Extension>.xml</Extension>
        <Path>C:\UriExamples</Path>
        <AltFullFilename>C:\UriExamples\Backup\Input002.xml</AltFullFilename>
        <BackupFilename>C:\UriExamples\Input002.xml.bak</BackupFilename>
      </File>
    </FileProperties>


    Let's examine the output in more detail

    Compatibility

    Native Execution Engine, XSLT 2.0, C#

    This is a scalar function so the standard rules apply if multiple values are presented to one or more inputs.
