Liquid XML Data Binder 2019
Select Language Options for C#
Liquid XML Data Binding Wizard > Liquid XML Data Binder > Select Language Options for C#

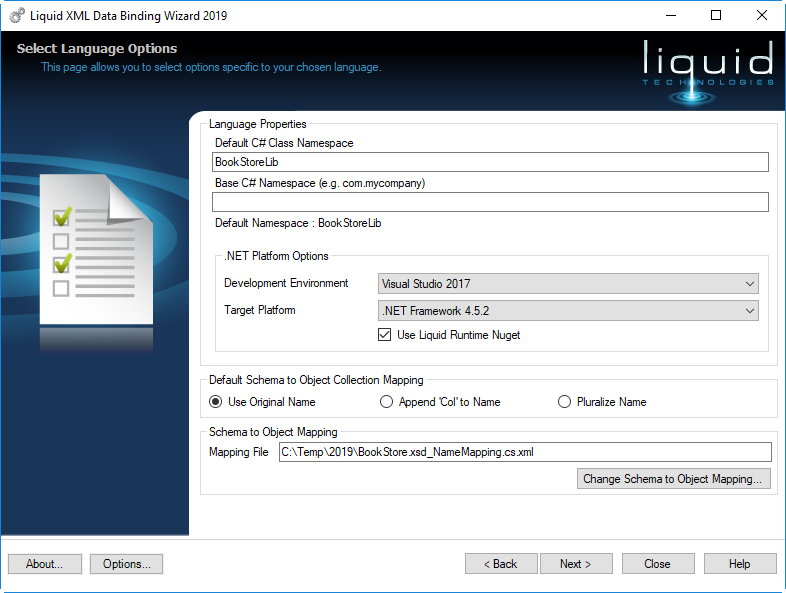

If your selected language is C#, the C# options page displays the Language Properties that relate to C# code generation.

Default C# Class Namespace

This allows you to specify the C# Namespace that all generated classes will form part. This also represents the name of the generated C# project.

Base C# Namespace

This allows you to specify a prefix to the C# Namespace that all generated classes will form part. This is useful if you have a company standard that dictates all libraries should be in the standard company namespace, e.g. com.mycompany.

Default Schema to Object Collection Mapping

This allows you to select the manner in which properties and methods that reference Collections are generated.

E.g. for the following XML:

<person>
    <address/>
    <address/>
    <address/>
</person>

where a <person> may contain many <address> elements:

Use Original Name

This option simply uses the element name from the XML Schema. E.g Person Class would have the method declaration:

XmlObjectCollection<Address> Address { get; }

Append 'Col' to Name

This option appends 'Col' to the element name from the XML Schema. E.g Person Class would have the method declaration:

XmlObjectCollection<Address> AddressCol { get; }

Pluralize Name

This option attempts to pluralize the element name from the XML Schema using a lookup file 'pluralList.txt' that can be found in the [INSTALL DIR]\XMLDataBinder folder and can be manually extended to include your own terms. E.g The Person Class would have the method declaration:

XmlObjectCollection<Address> Addresses { get; }
