This section covers a few of the lesser used constructs:

Element and Attribute Groups

Elements and Attributes can be grouped together using <xs:group> and <xs:attributeGroup>. These groups can then be referred to elsewhere within the schema. Groups must have a unique name and be defined as children of the <xs:schema> element. When a group is referred to, it is as if its contents have been copied into the location it is referenced from.

Note: <xs:group> and <xs:attributeGroup> can not be extended or restricted in the way <xs:complexType> or <xs:simpleType> can. They are purely to group a number of items of data that are always used together. For this reason they are not the first choice of constructs for building reusable maintainable schemas, but they can have their uses.

  <xs:group name="CustomerDataGroup">
<xs:sequence>
<xs:element name="Forename" type="xs:string" />
<xs:element name="Surname" type="xs:string" />
<xs:element name="Dob" type="xs:date" />
</xs:sequence>
</xs:group> <xs:attributeGroup name="DobPropertiesGroup">
<xs:attribute name="Day" type="xs:string" />
<xs:attribute name="Month" type="xs:string" />
<xs:attribute name="Year" type="xs:integer" />
</xs:attributeGroup>

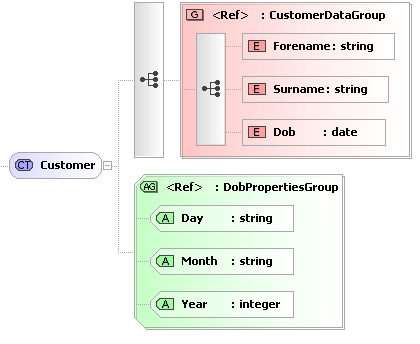

These groups can then be referenced in the definition of complex types, as shown below.

<xs:complexType name="Customer">
    <xs:sequence>
        <xs:group ref="CustomerDataGroup"/>
        <xs:element name="..." type="..."/>
    </xs:sequence>
    <xs:attributeGroup ref="DobPropertiesGroup"/>
</xs:complexType>


The <any> Element

The <xs:any> construct allows us specify that our XML document can contain elements that are not defined in this schema. A typical use for this is when you define a message envelope. For example, the message payload is unknown to the system, but we can still validate the message.

Look at the following schema:

  <xs:element name="Message">
<xs:complexType>
<xs:sequence>
<xs:element name="DateSent" type="xs:date" />
<xs:element name="Sender" type="xs:string" />
<xs:element name="Content">
<xs:complexType>
<xs:sequence>
<xs:any />
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
We have defined an element called "Message", which must have a "DateSent" child element (which is a date), a "Sender" child element (which must be a string), and a "Content" child element - which can contain any element - it doesn't even have to be described in the schema.
So the following XML would be acceptable.
<Message>
<DateSent>2000-01-12</DateSent>
<Sender>Admin</Sender>
<Content>
<AccountCreationRequest>
<AccountName>Fred</AccountName>
</AccountCreationRequest>

</Content>
</Message>

The <xs:any> construct has a number of properties that can further restrict what can be used in its place.

minOccurs and maxOccurs allows you to specify how may instances of undefined elements must be placed within the XML document.

namespace allows you to specify which that the undefined element must belong to the a given namespace. This may be a list of namespace's (space separated). There are also 3 built in values ##any, ##other, ##targetnamespace, ##local. Consult the XSD standard for more information on this.

processContents tells the XML parser how to deal with the unknown elements. The values are:

The <anyAttribute>

<xs:anyAttribute> works in exactly the same way as <xs:any>, except it allows unknown attributes to be inserted into a given element.

        <xs:element name="Sender">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:string">
<xs:anyAttribute />
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>

This would mean that we can add any attributes we like to the Sender element, and the XML document would still be valid

<Sender ID="7687">Fred</Sender>
