LessThanOrEqual
See Also Send Feedback
Data Mapping > Data Mapper Functions > By Category > Comparator > LessThanOrEqual

Glossary Item Box

Function Name
Less Than or Equal
Category
Comparator
Icon
Less Than or Equal
Description
Determine whether one value is less than or equal to another
Inputs
Value 1 Value that must be less than or equal to Value 2 for a true output
Value 2 Value to check Value 1 against
Outputs
Result Boolean indicator - true if Value 1 is less than or equal to Value 2, false otherwise
Properties
None -

Usage

The Data Mapper Comparator Less Than or Equal function allows you to determine whether one value is either less than or equal to another. The values in question may be from the input data source or components within the Mapper, such as Constants or function outputs. Since the Less Than or Equal function outputs a boolean value, it is most usefully used in conjunction with other functions such as Set and Logic components. To apply the Comparator Less Than or Equal function, use the following process:

Create a new Data Mapper file, dragging your XML data source and targets into the editor area. For this example we are using staff_source.xsd, an XML Schema Definition inferred from the following source:

Source XML Copy Code
<staff>
 <employee>
  <first_name>Mark</first_name>
  <second_name>Brown</second_name>
  <started>2001</started>
  <permanent>true</permanent>
 </employee>
 <employee>
  <first_name>Jane</first_name>
  <second_name>Jackson</second_name>
  <started>1998</started>
  <permanent>true</permanent>
 </employee>
 <employee>
  <first_name>Joe</first_name>
  <second_name>Simpson</second_name>
  <started>2008</started>
  <permanent>false</permanent>
 </employee>
 <employee>
  <first_name>Lynn</first_name>
  <second_name>Nicolson</second_name>
  <started>2008</started>
  <permanent>false</permanent>
 </employee>
</staff>

For our target schema we will be using staff_target.xsd, inferred from the following XML:

Target XML Copy Code
<company>
 <staff_member since="2000" contract="false">
  <f_name>Ken</f_name>
  <s_name>Jones</s_name>
 </staff_member>
 <staff_member since="2003" contract="true">
  <f_name>Linda</f_name>
  <s_name>Lee</s_name>
 </staff_member>
 <staff_member since="1998" contract="false">
  <f_name>Paul</f_name>
  <s_name>Mitchell</s_name>
 </staff_member>
</company>

The data models employees within an organisation. Let's assume that, rather than mapping all data values, we only want to map "employee" elements representing staff members who have been working at the company since before 2000, i.e. those employees who started at the company in 1999 or earlier. Here is the Data Mapper with Source and Target imported:

Data Mapper Source and Target

Drag the Comparator Less Than or Equal function from the Component Palette into the mapping area:

Comparator Less Than or Equal Component

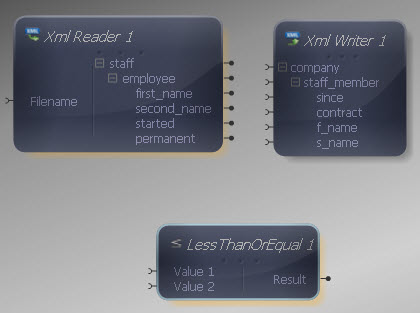

Less Than or Equal Added

The Less Than or Equal function takes two inputs representing the values you want to compare. The function output will indicate true if Value 1 is less than or equal to Value 2, and false if it is not. Both inputs and output of the Less Than or Equal function may be connected to items in the XML Reader/ Writer or other components in the Mapper.

Since we want to map only elements whose "started" value is a maximum of 1999, connect its output in the XML Reader to the Value 1 input in the Less Than or Equal function.

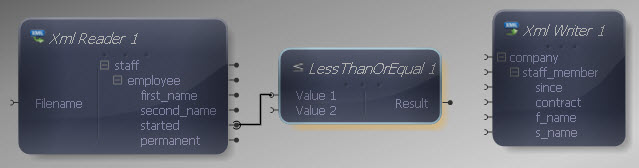

Reader to Less Than or Equal

Now we need to define the value to compare the input start date to. Drag a Constant Value from the Data Type section onto the Mapper. Right-click it and choose Show Properties. Enter an integer as the Data Type and the number 1999 as the value.

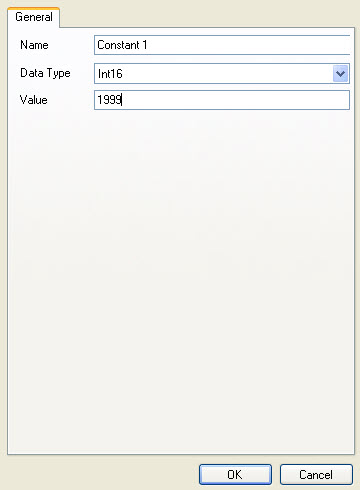

Constant Properties

Connect the Constant output to the Value 2 input in the Less Than or Equal function.

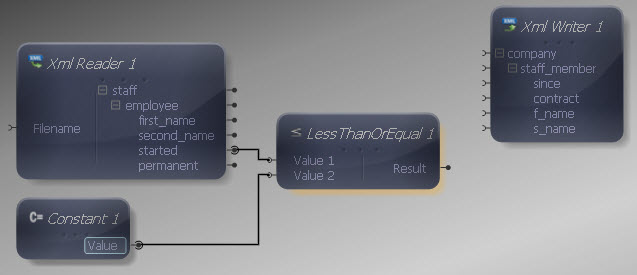

Constant to Less Than or Equal

Now each time the Mapper encounters the "started" element, it will check whether the number is at most 1999. If a date is less than or equal to 1999, the function will output a value of true, otherwise it will output a value of false. Let's now use this information to filter our data. Drag a Filter function from the Set section onto the Mapper. Connect its Bool input to the output of the Less Than or Equal function and its Nodes input to the "employee" output in the XML Reader.

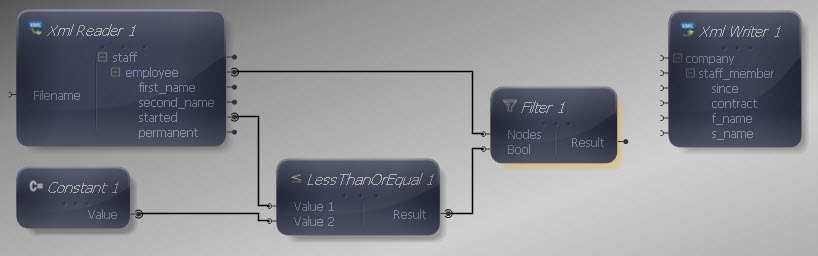

Filter Added

Now connect the output of the Filter function to the "staff_member" input in the XML Writer. This will ensure that an "employee" element is only mapped if its "since" element is at most 1999.

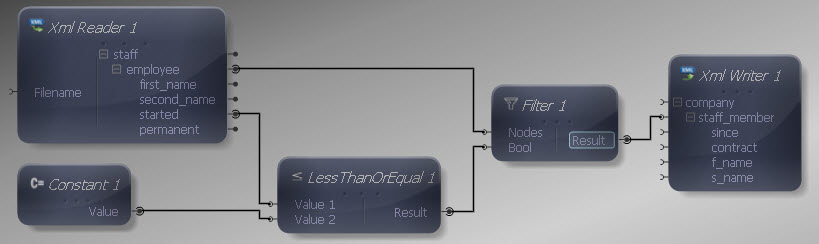

Filter to Writer

Finally let's make the remaining input and output connections. Remember to map "started" to "since" - although we have used this value from the source we have not yet instructed the Mapper to map it.

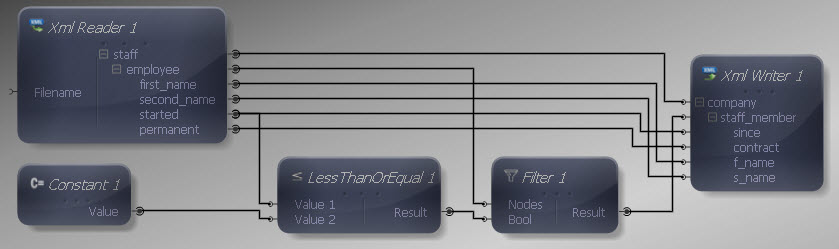

Inputs and Outputs Connected

We can now execute the transform by pressing Shift-F5 or the Execute button (Execute). The transform is applied and the file we selected as output opens in the editor:

Output XML Copy Code
<company>
 <staff_member since="1998" contract="true">
  <f_name>Jane</f_name>
  <s_name>Jackson</s_name>
 </staff_member>
</company>

The output only contains those "staff_member" elements with start dates up to and including 1999. Most of the Comparator functions are particularly useful when you need to filter or transform your data depending on an unknown range of input values.

The Less Than or Equal function can handle various different data types including numbers and Strings.
Unlike the Less Than or Equal function, the alternative Less Than function will return false if the values are equal.
